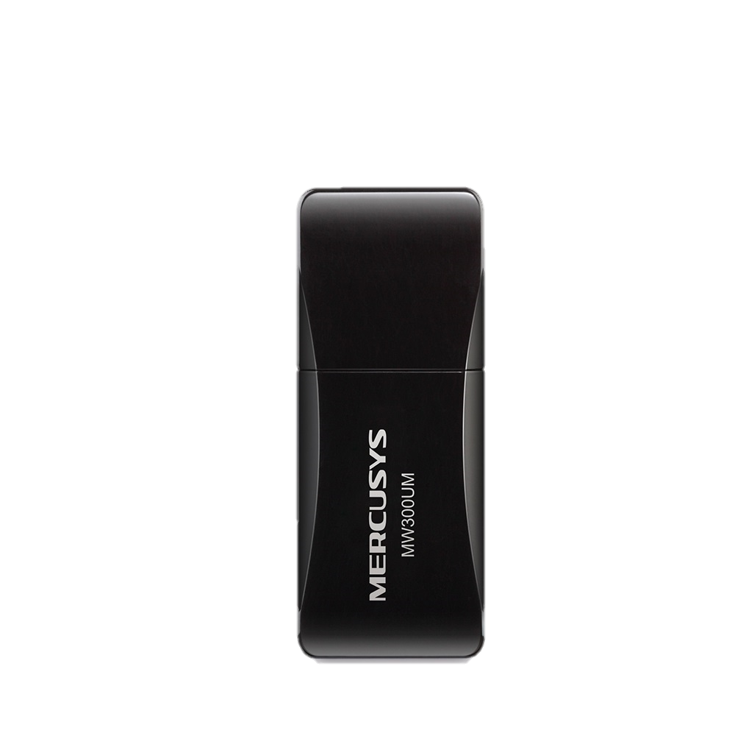

Placa USB MW300UM Mini P.RedW USB Mercusys 300Mbps

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency 2.400 – 2.4835GHz

Signal Rate

11n: Up to 300Mbps(Dynamic)
11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic)
Reception Sensitivity

270M: -62dBm@10% PER
130M: -65dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Transmission Power <20dBm

Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

HARDWARE
Dimensions (W X D X H) 1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm)

Interfaces USB 2.0

Antenna Type Internal

OTHERS
Certifications CE, ROHS

Package Contents

N300 Wireless Mini USB Adapter
MW300UM
Quick installation guide
Resource CD
Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing

System Requirements Windows 10/8.1/8/7/XP (32/64bit)
